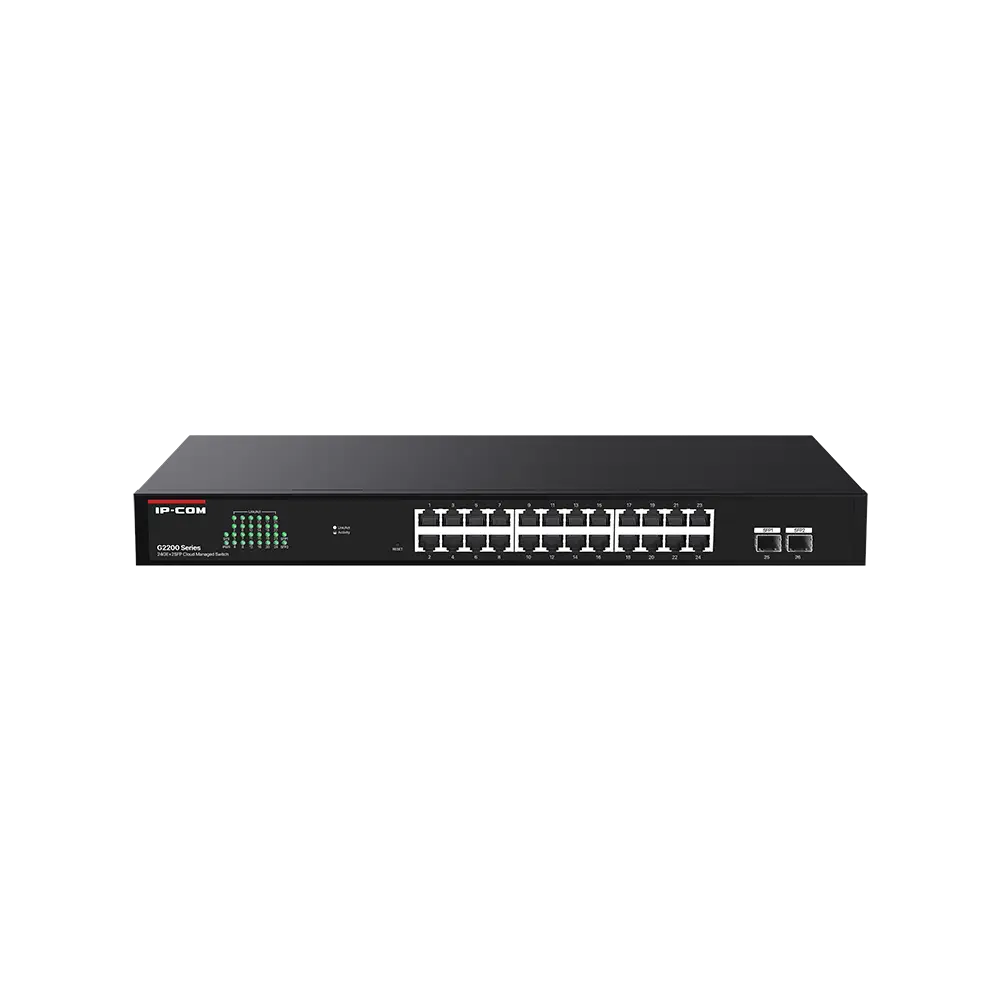

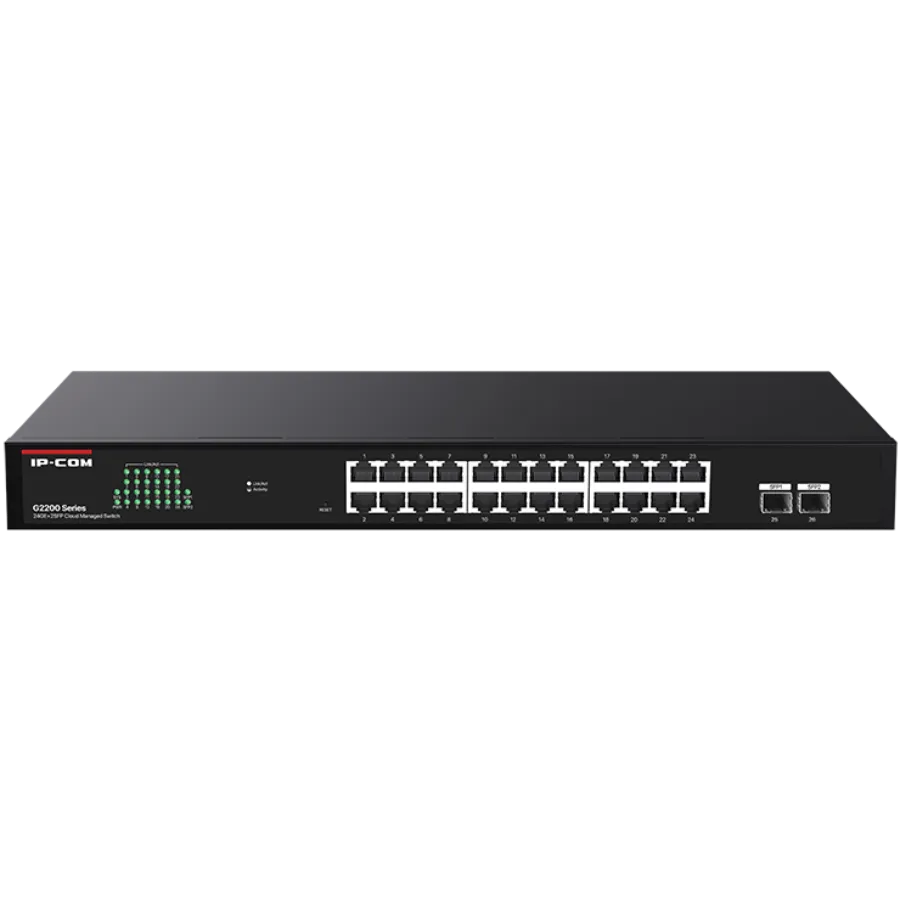

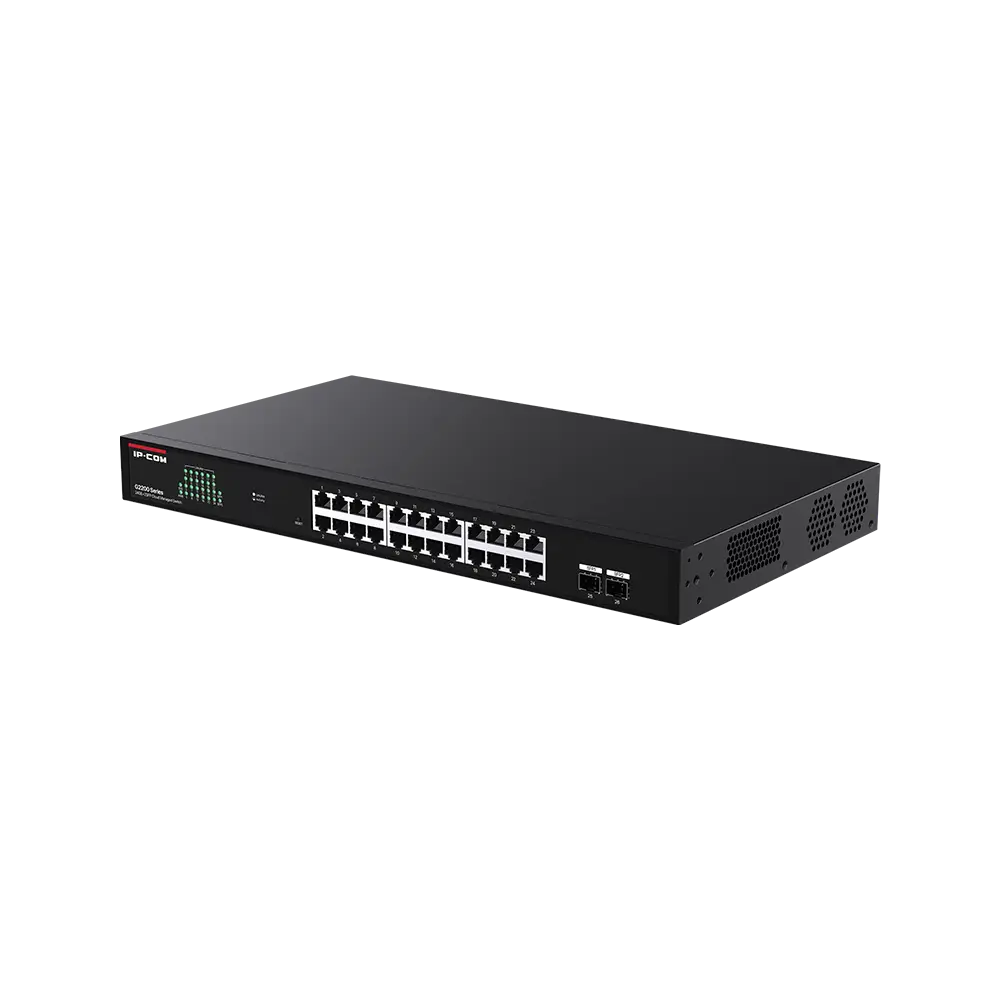

IP-COM G2226F 24+2G Combo Port Gigabit Switch - Technical Specifications🔹 Port Configuration

• 24 × 10/100/1000BASE-T RJ45 ports
• 2 × 1000BASE-X SFP (mini-GBIC) fiber slots
• Auto-MDI/MDIX on all copper ports
• Combo ports (RJ45/SFP shared, auto-sensing)

• Switching Capacity: 52 Gbps
• Forwarding Rate: 38.7 Mpps
• MAC Address Table: 16K entries
• Packet Buffer Memory: 4MB
• Latency: <3μs (64-byte packets)

• VLAN Support: Port-based VLAN (IEEE 802.1Q)
• STP/RSTP: IEEE 802.1D/w (Spanning Tree Protocol)
• IGMP Snooping: v1/v2/v3
• Link Aggregation: Static LACP (4 groups max)
• QoS: 802.1p (4 priority queues)

• Management Interface:
• Web GUI (HTTP/HTTPS)
• CLI (Telnet/SSH)
• SNMP v1/v2c/v3
• Security Features:
• Port security
• MAC address filtering
• 802.1X authentication
• DoS protection

• Power Supply: Dual redundant (100-240V AC)
• Power Consumption: ≤28W (typical)
• PoE Support: No (for PoE version see G2226P)

• Dimensions: 440 × 260 × 44 mm (1U height)
• Weight: 3.2 kg
• Cooling: 2 × smart fans (auto-speed adjustment)
• MTBF: >150,000 hours

• Operating Temp: 0°C to 45°C
• Storage Temp: -40°C to 70°C
• Humidity: 10% to 90% non-condensing

• CE, FCC, RoHS
• IEEE 802.3/3u/3ab/3z
• IEEE 802.1D/1w/1Q/1X

• Hybrid copper/fiber connectivity - flexible uplink options
• Layer 2 Lite management - basic VLAN and QoS
• Dual power inputs - for power redundancy
• Fan speed control - optimized cooling

• Enterprise access layer switching
• Fiber uplink aggregation
• Campus network edge
• Medium-density IP surveillance

For firmware and documentation:

📥 Download Center

*Note: This is a web-smart switch. For full Layer 3 features, consider IP-COM's L3 managed switches.*
