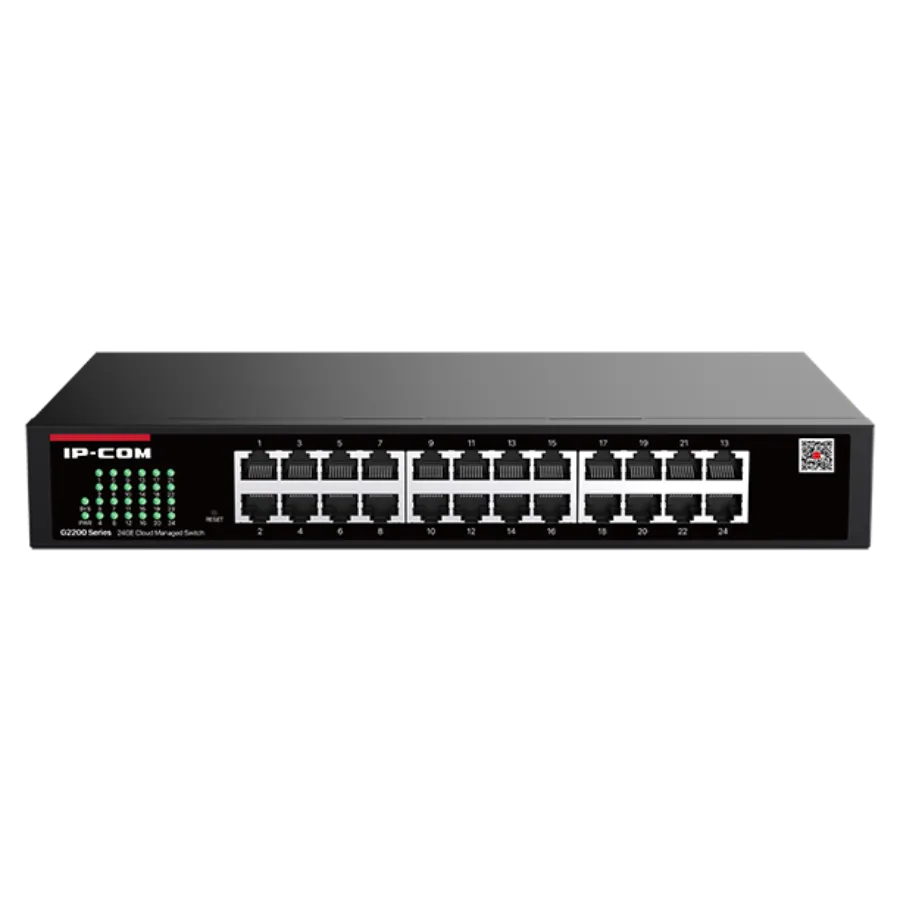

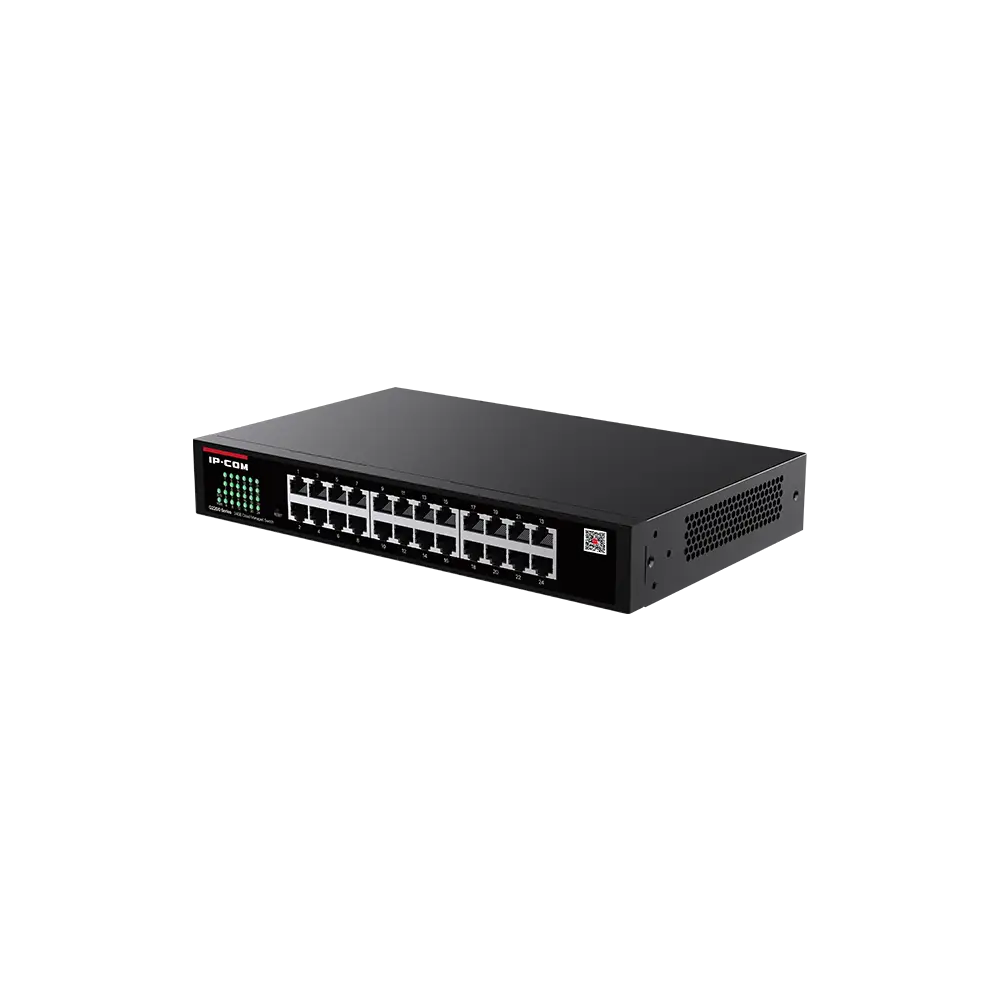

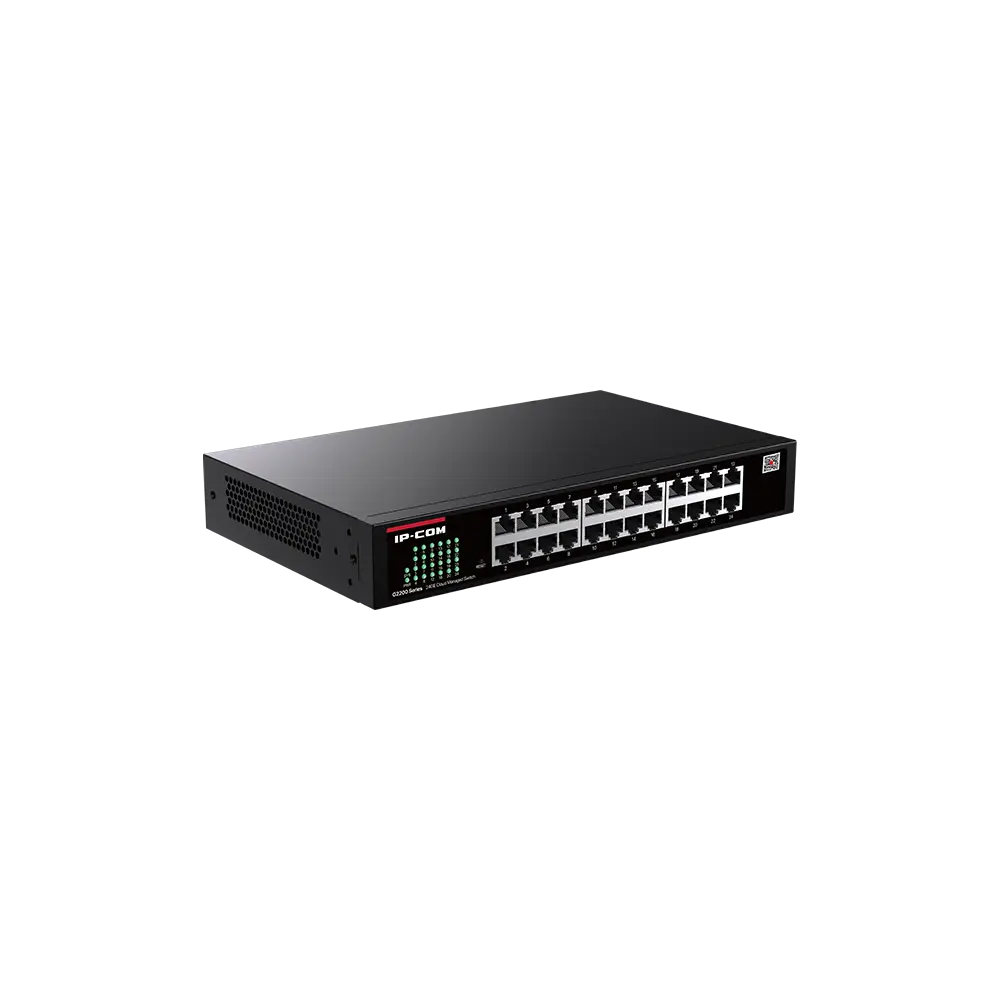

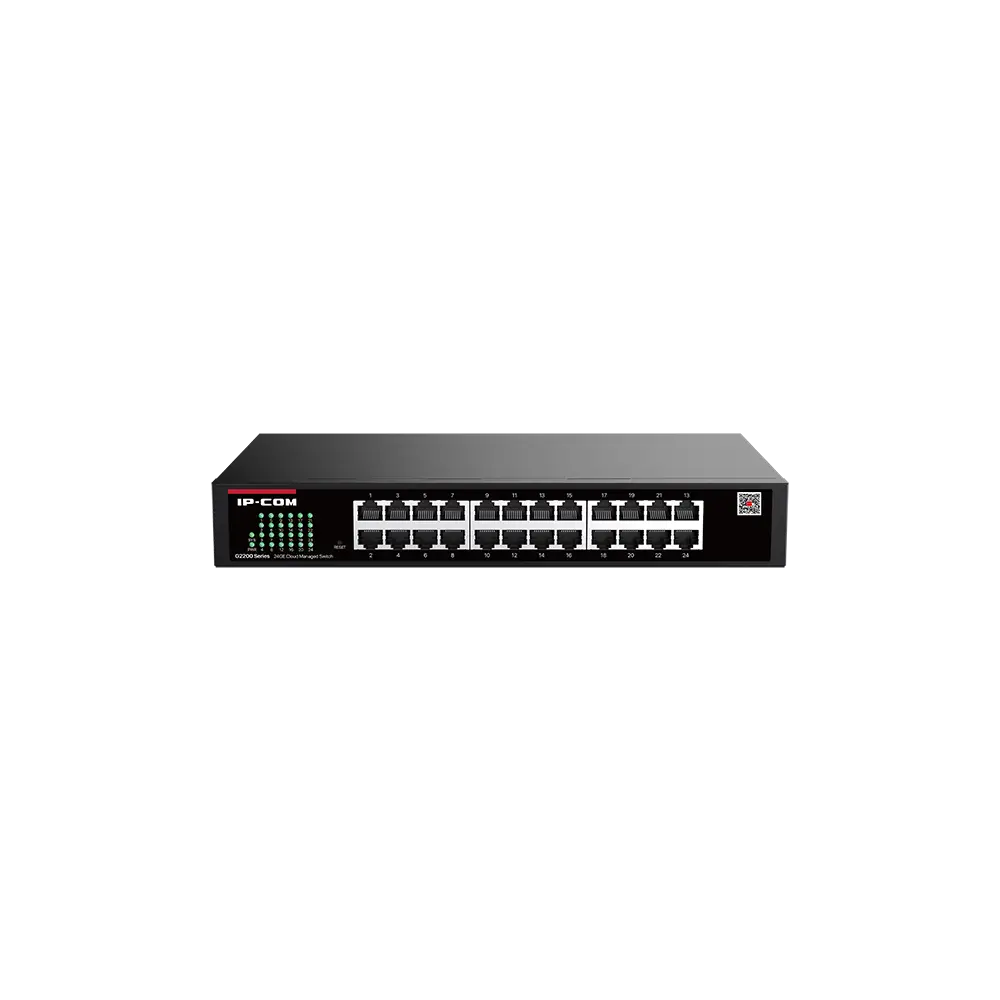

IP-COM G2224D

السعر:
IQD 78,750
  • icon
    ضمان المنتج
    1 شهر
  • icon
    رمز المنتج

    359080

  • تم نسخ رمز المنتج بنجاح!
وصف المنتج

🔹 Core Specifications

  • Type: Unmanaged Gigabit Ethernet Switch
  • Port Configuration:
  • 24 × 10/100/1000BASE-T RJ45 ports
  • Auto-MDI/MDIX support (crossover detection)
  • Switching Capacity: 48 Gbps (non-blocking)
  • Forwarding Rate: 35.7 Mpps
  • MAC Address Table: 8K entries
  • Jumbo Frames: Support up to 9KB
🔹 Power & Efficiency
  • Power Consumption: ≤12.8W (operational)
  • Power Supply: Internal 100-240V AC
  • Green Technology: IEEE 802.3az Energy Efficient Ethernet (EEE)
  • Cooling: Fanless passive cooling design
🔹 Physical Characteristics
  • Dimensions: 440 × 180 × 44 mm (W×D×H)
  • Weight: 2.3 kg
  • Enclosure: Metal casing with plastic front panel
  • Mounting Options: Desktop or 19" rack-mountable (1U height)
  • LED Indicators: Per-port status (Link/Activity/Speed)
🔹 Networking Standards Compliance
  • IEEE 802.3i 10BASE-T Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet
  • IEEE 802.3x Flow Control
  • IEEE 802.1p QoS (Basic traffic prioritization)
🔹 Advanced Features
  • Store-and-Forward switching architecture
  • Auto-negotiation on all ports
  • Backpressure flow control for half-duplex
  • Cable diagnostics: Automatic detection of cable faults
🔹 Environmental Specifications
  • Operating Temperature: 0°C to 40°C
  • Storage Temperature: -40°C to 70°C
  • Humidity: 10% to 90% non-condensing
🔹 Typical Applications
  • Small-to-medium business (SMB) networks
  • IP surveillance systems (NVR/IP camera connectivity)
  • NAS and SAN storage connectivity
  • Backbone for workgroup networks
  • High-performance gaming LAN environments
🔹 Package Contents
  • G2224D switch unit
  • Power cord
  • Rack-mount ears (optional)
  • Rubber feet for desktop placement
  • Quick installation guide
🔹 Warranty & Support
  • Manufacturer Warranty: 3 years limited
  • MTBF: >100,000 hours
  • Support: Firmware updates available on IP-COM website
🔹 Key Differentiators
  • Plug-and-play operation (zero configuration required)
  • Full wire-speed forwarding on all ports
  • Low-latency switching (<4μs)
  • Broadcast storm protection
